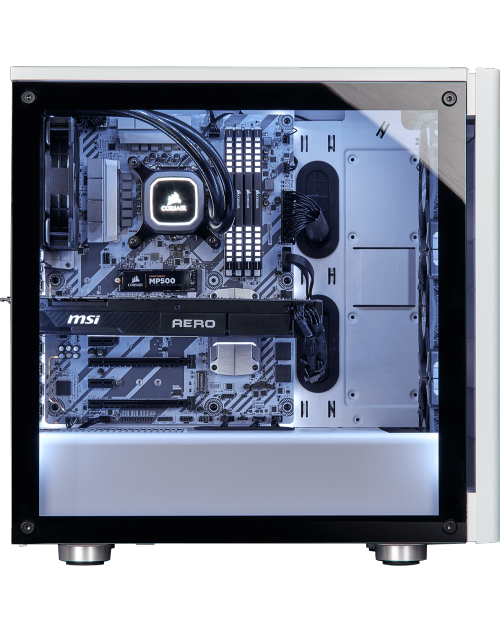

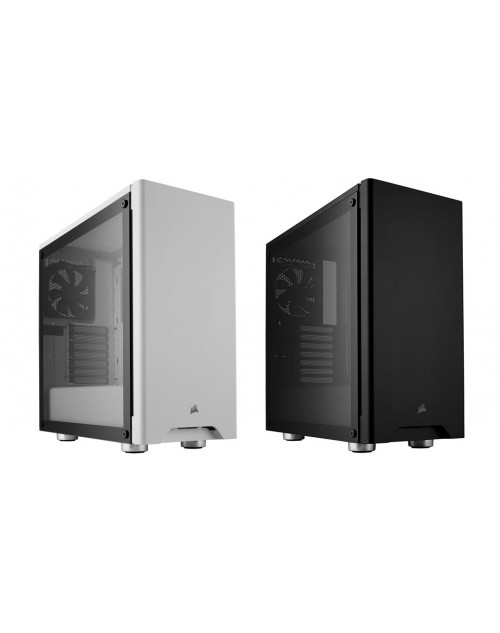

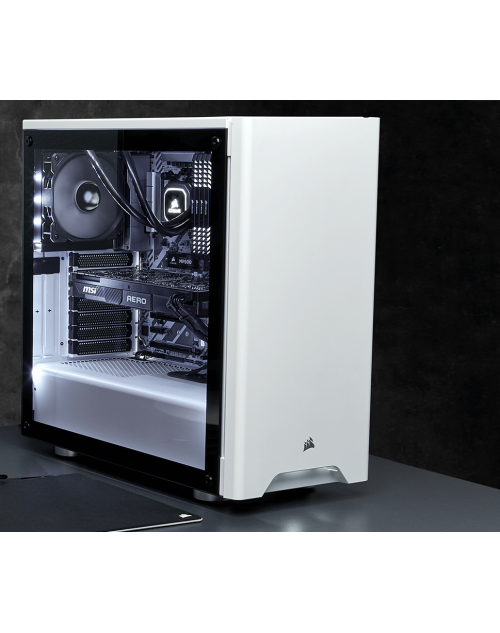

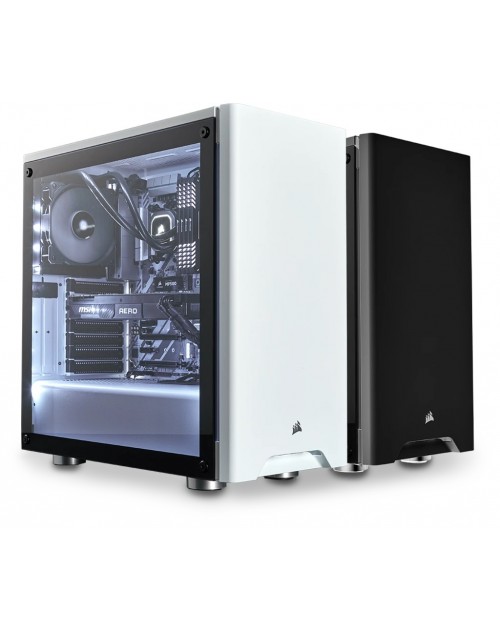

Corsair Carbide Series 275R Gaming Case

6 Months Warranty

Specifications

Model

Brand

Corsair

Series

Carbide Series 275R

Model

CC-9011133-WW

Details

Type

ATX Mid Tower

Color

White

Case Material

Steel / Plastic / Tempered Glass

With Power Supply

No

Motherboard Compatibility

Micro ATX / ATX / Mini-ITX

Side Panel Window

Tempered Glass

Expansion

Internal 3.5" Drive Bays

2

Internal 2.5" Drive Bays

2

Expansion Slots

7

Front Panel Ports

Front Ports

2 x USB 3.0 / 1 x Headphone / 1 x Microphone

Cooling System

Fan Options

Front: 3 x 120mm (1 x 120mm fan included) or 2 x 140mm fan

Top: 2 x 120mm or 2 x 140mm fan

Rear: 1 x 120mm fan (Included)

Radiator Options

Front - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm

Dimensions & Weight

Max GPU Length Allowance

370 mm

Max CPU Cooler Height Allowance

170 mm

Max PSU Length

180 mm

Dimensions (H x W x D)

17.19" x 8.31" x 17.56"

Weight

18.87 lbs.

Additional Info

Features

Stunning Tempered Glass Window: Tempered glass side panel shows off your system in style.

Clean and Minimalist Design: Clean lines, curved edges with soft accent lighting.

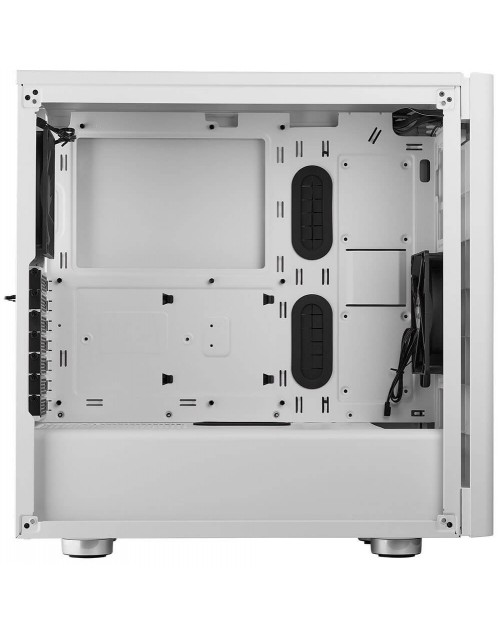

Builder-Friendly Internal Layout: Simple and intuitive internal layout enables easy and quick building.

Versatile Cooling Options: Room for up to 360mm radiator in front, 240mm radiator at top, and 120mm radiator in the rear.

Expansive Storage Space: Rugged-construction steel drive tray provides ample of room for additional drives.

Built-in Cable Routing: Dedicated cable routing compartment enables effortlessly clean builds.

Direct Airflow Path Cooling: Cool air is directed to the hottest components, without any interference from drive cages.

Package Content

Carbide Series 275R Tempered Glass ATX Mid-Tower Case
Accessory Kit
Quick Start Guide

Additional Information

Date First Available

February 15, 2019
